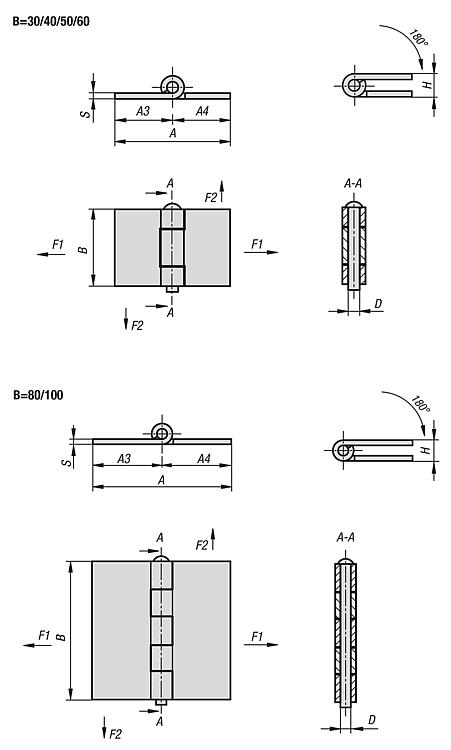

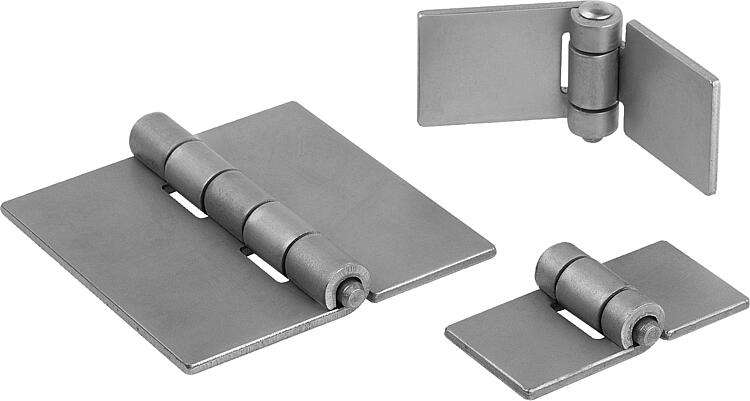

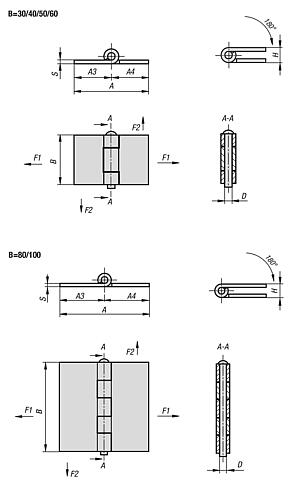

K1805Hinges steel or stainless steel weldable |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel or stainless steel.Version:Profile steel bright.
Stainless steel 1.4301.Note:The loading values given for the hinges are non-binding reference values without consideration of safety factors and exclude any liability. The values given are for information purposes only and do not constitute a legally binding assurance of properties.
The load values have been determined under laboratory conditions. Each user must determine individually whether the hinge is suitable for the respective application.
Different materials attached to the hinge and the type of attachment used, meteorological conditions and wear can effect the calculated values.Assembly:Through welding or customised holes. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
