K0330 inchSpring plungers with hex socket and POM thrust pin, stainless... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Sleeve stainless steel 1.4305 (AISI 303 equivalent).
Thrust pin POM.
Spring stainless steel 1.4310 (AISI 301 equivalent).

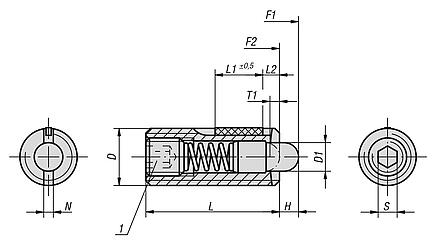

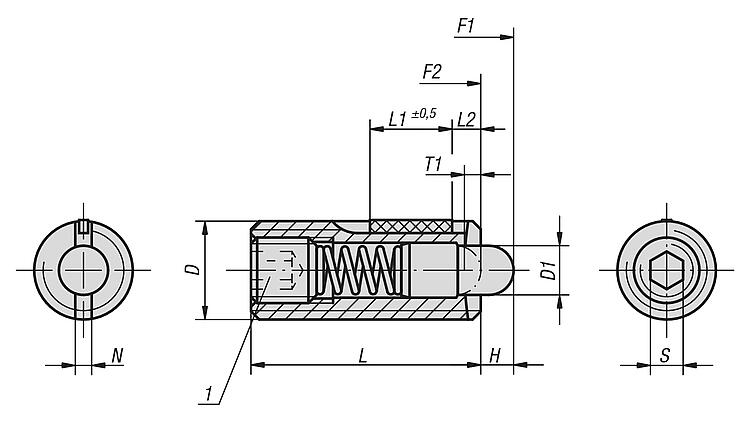

Thread lock nylon. Version:Bright.Note:For the inch series, dimension D and S are in inches, all other dimensions are in mm.Drawing reference:L2 = ca. two full threads
1) grub screw glued-in DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| D | D1 | H | L | L1 | T1 | N | S | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | Tightening
torque
approx. Nm | Loosening torque
approx. Nm | Order No.

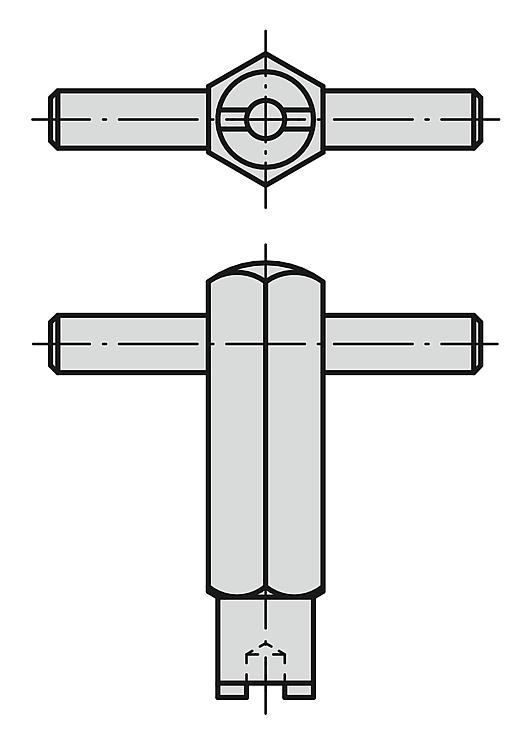

Assembly key | CAD | Acc. | Price | Order |
|---|
| K0330.A4 | 3/8-16 | 4 | 3 | 22 | 9 | 1,4 | 1,6 | 3 | 8 | 31 | 1,3 | 0,6 | K0317.910 | | | 0.00 € | | | K0330.A5 | 1/2-13 | 6 | 4 | 28 | 10 | 2 | 2 | 4 | 10 | 47 | 2 | 1,3 | K0317.912 | | | 0.00 € | | | K0330.A1 | 10-32 | 2,4 | 2,3 | 18 | 7 | 0,8 | 0,8 | 1,5 | 5 | 17 | 0,12 | 0,08 | K0317.905 | | | 0.00 € | | | K0330.A6 | 5/8-11 | 7,5 | 5 | 32 | 14 | 2,5 | 2,5 | 5 | 45 | 100 | 3,9 | 3 | K0317.916 | | | 0.00 € | | | K0330.AJ | 1/4-28 | 2,7 | 2,5 | 20 | 7 | 1 | 1 | 2 | 6 | 17 | 0,45 | 0,22 | K0317.906 | | | 0.00 € | | | K0330.A2 | 1/4-20 | 2,7 | 2,5 | 20 | 7 | 1 | 1 | 2 | 6 | 17 | 0,45 | 0,22 | K0317.906 | | | 0.00 € | | | K0330.A3 | 5/16-18 | 3,5 | 3 | 22 | 8 | 1,4 | 1,2 | 2,5 | 7 | 29 | 1,05 | 0,37 | K0317.908 | | | 0.00 € | |
