K0273 inchWing grips internal thread, stainless steel - inch |
go back |
|

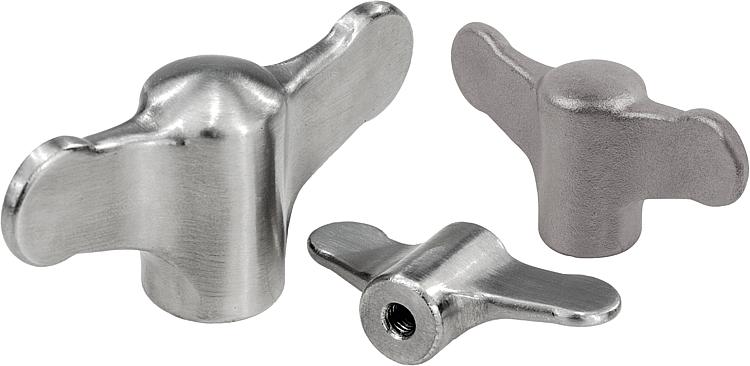

Item description/product images |
|
|
DescriptionMaterial:Stainless steel 1.4308 (AISI "316" equivalent). Version:Polished or blasted.On request:With external threads.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.

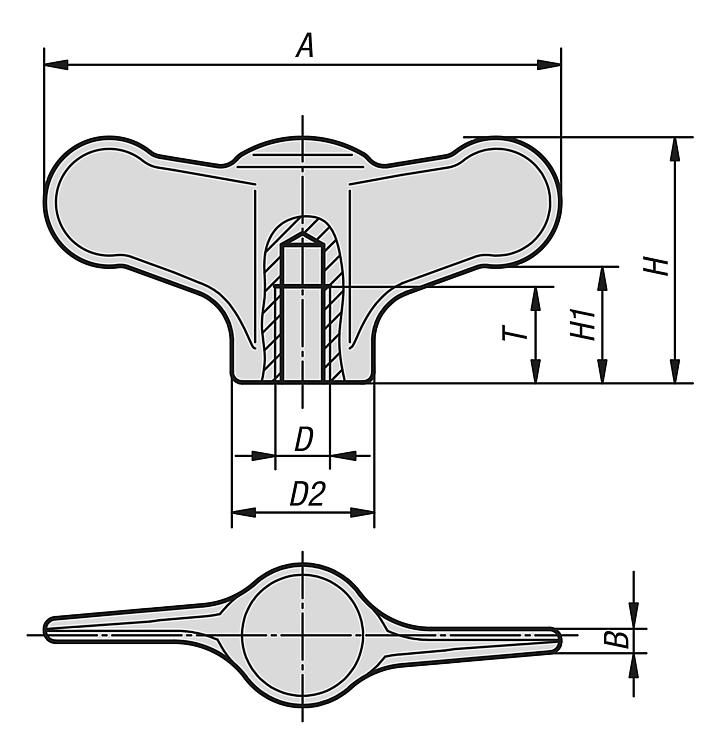

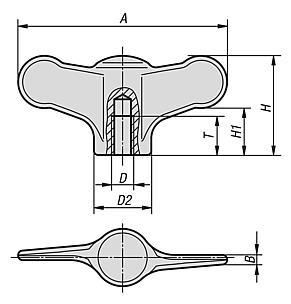

| Main
colour | A | B | D | D2 | H | H1 | T | CAD | Acc. | Price | Order |
|---|
| K0273.9AE | polished | 38 | 1,7 | 8-32 | 10,5 | 18 | 8,5 | 9 |  | | 0.00 € | | | K0273.9A1 | polished | 38 | 1,7 | 10-32 | 10,5 | 18 | 8,5 | 9 | | | 0.00 € | | | K0273.9A2 | polished | 38 | 1,7 | 1/4-20 | 10,5 | 18 | 8,5 | 9 | | | 0.00 € | | | K0273.1A0 | polished | 50 | 2,3 | 10-24 | 14 | 24 | 11,5 | 10 | | | 0.00 € | | | K0273.1A1 | polished | 50 | 2,3 | 10-32 | 14 | 24 | 11,5 | 12 | | | 0.00 € | | | K0273.1A2 | polished | 50 | 2,3 | 1/4-20 | 14 | 24 | 11,5 | 10 | | | 0.00 € | | | K0273.2A3 | polished | 75 | 3,4 | 5/16-18 | 21 | 35 | 16,5 | 14 | | | 0.00 € | | | K0273.2A4 | polished | 75 | 3,4 | 3/8-16 | 21 | 35 | 16,5 | 14 | | | 0.00 € | | | K0273.9AE1 | blasted | 38 | 1,7 | 8-32 | 10,5 | 18 | 8,5 | 9 | | | 0.00 € | | | K0273.9A11 | blasted | 38 | 1,7 | 10-32 | 10,5 | 18 | 8,5 | 9 | | | 0.00 € | | | K0273.9A21 | blasted | 38 | 1,7 | 1/4-20 | 10,5 | 18 | 8,5 | 9 | | | 0.00 € | | | K0273.1A01 | blasted | 50 | 2,3 | 10-24 | 14 | 24 | 11,5 | 12 | | | 0.00 € | | | K0273.1A11 | blasted | 50 | 2,3 | 10-32 | 14 | 24 | 11,5 | 12 | | | 0.00 € | | | K0273.1A21 | blasted | 50 | 2,3 | 1/4-20 | 14 | 24 | 11,5 | 12 | | | 0.00 € | | | K0273.2A31 | blasted | 75 | 3,4 | 5/16-18 | 21 | 35 | 16,5 | 15 | | | 0.00 € | | | K0273.2A41 | blasted | 75 | 3,4 | 3/8-16 | 21 | 35 | 16,5 | 15 | | | 0.00 € | |
